Original Lonsdor KH100 Remote Maker Key Programmer Generate Chip/Simulate Chip/Identify Copy/Remote Frequency/Access control key

In Stock. History 248 sold. Item No. SK273

Latest price: US$259.00
Buy Now: US$189.00 27% off
Shipping:
Free Shipping Express Shipping Service    Estimated delivery time: 5-7 working days.See details »
Weight:
0.3KG     ( 0.66LB )
Package:
23cm*11.6cm*6cm     ( Inch: 9.06*4.57*2.36 )
Returns:
Return for refund within 7 days,buyer pays return shipping. Read details »


Product Description

KH100 is a versatile handheld smart device, launched by Shenzhen Lonsdor Technology Co., which includes special features and functionality, such as: identify© chip, access control key, simulate chip, generate chip, generate remote (key), generate smart key (card), detect remote frequency, detect infrared signal, search induction area, detect IMMO, unlock Toyota smart key and etc.

Lonsdor KH100 Hand-Held Remote/Smart Key Programmer

Lonsdor KH100 is a versatile hand-held smart device, able to access control key, simulate/ generate chip, generate remote (key), detect remote frequency, detect IMMO, unlock Toyota smart key and etc.

How to copy 48 Chip with Lonsdor KH100 Remote Maker?
Lonsdor KH100 User manul
How to clone ID48 Chip by Lonsdor KH100

Lonsdor KH100 Product features:

All-around Functions:  Basically cover all
Built-in Super Sensor: No interference within 1m when collect data
Help Notes: Diagram & text makes operation easier
WiFi Module:  Networking one-click update
Modern appearance design, in line with the operating habits of the public.
Device system comes with operation instructions, easier for you to use.
It covers almost all the functions of the similar products in the market.
Built-in super sensor to collect data (over-range data collection)
Exclusive support for 8A (H chip) generation.
Built-in WIFI module, can connect to network at any time.

The chips types can be copied by Lonsdor KH100 remote maker incl.

11/12/13/33/42/46/48/4C/60/61/62/63/64/65/66/67/68/69/6A/6B/70E/71/72G/8A(Toyota H)

Note 1:
11/12/13: Can be copied to T5/original JMD red super chip/ original JMD king chip
33: Can be copied to T5/ blank 7935
42: Can be copied to blank 7935
46: Can be copied to LKP46/ CN3/ original JMD red super chip/ original JMD king chip
48: Can be copied to Deputy factory 48
4C/60/61/62/63/64/65/66/67/68/69/6A/6B/70E/71/72G: Can be copied to LKP4D/ JMD Red Super Chip (S-JMD) for Handy Baby/original JMD king chip for handy baby
8A (Toyota H) chip: Can be copied to TS21

Note 2:
Copy function is encrypted by the chip itself, some original car keys only support reading or editing, not copy.
If the original car key does not support copies, the copy button will not appear in the details page.

Can't support copy 4D 80bit chips for now

Lonsdor KH100 Remote Maker

lonsdor-kh100-smart-key-programmer-m
Lonsdor KH100 Remote Maker

Lonsdor KH100 Device components



Lonsdor KH100 Device components



Name

Notes

Antenna

To induce simulated chip and detect ignition coil

Display screen

2.8-inch color screen, resolution: 320X480

Induction coil

To identify, copy, generate key chip or remote, etc.

Port 1

USB-B port

Port 2

Dedicated port for remote’s connector

Power button

In shut-down state, tap to boot the device. In power-on state, tap to switch to power saving mode. Long press for 3s to shut down

Remote frequency detection

Put remote in this position to detect its frequency.

High-frequency detection

To identify and copy IC card.

Lonsdor KH100 Figures:

Lonsdor KH100 Figures

Lonsdor KH100 Function introduction

Lonsdor KH100 Function List

Identify Copy
Chip Simulation
Remote Generation
Remote Frequency
Access Control Key
Chip Generation
Coil Identification
Special Function

When complete the registration activation, it enters below menu interface:

Identify/copy/generate chip:

Multi-vendor chips supported
Especially Toyota 8A(H) chip copy

Identify copy generate

Simulate Chip

Able to simulate 4D/46/48 chips
With built-in super sensory data collector(no interference within 1 meter when collecting data)

lonsdor-kh100-simulate-chip

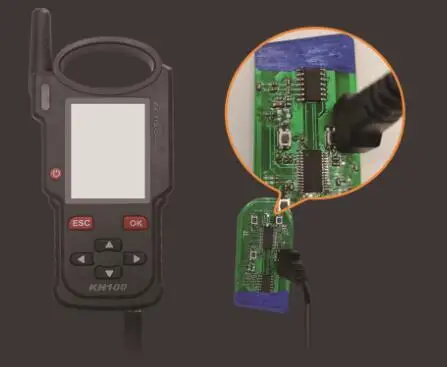

Generate remote/smart key:

Dedicated connector to generate remote/smart key Online update supported
Remote generation diagram

lonsdor-kh100-generate-smart-key

Smart key generation diagram

lonsdor-kh100-key-wiring

Dedicated connector to generate remote key:PS2-7Pin OD3.5

Lonsdor KH100

Access control/remote frequency
One-click identify and copy IC/ID cards
Copy multi-vendor chops
Detect remote frequency bands with high accuracy
One click identify ID card,able to copy multi-vendor chps,at the back sensor area

lonsdor-kh100-identify-id-card

lonsdor-kh100-identify-ic-card

Detect super frequency
Detect multiple frequency brands with high accuracy

lonsdor-kh100-detect-frequency

Lonsdor KH100 Remote Frequency

Enter this menu, put remote control at the device’s induction area to detect remote frequency.
Lonsdor KH100 Remote Frequency

Lonsdor KH100 Special function

Include: detect infrared signal, unlock Toyota smart key, More functions, to be continued...
① Detect infrared signal
Put remote control at the infrared signal detection area, press the remote's button once. When the light on KH100's screen is on, it indicates there is infrared signal, otherwise there is no signal (see below pic).

② Unlock Toyota smart key
Put in smart key, click OK to operate.
Lonsdor KH100 Special function

Lonsdor KH100 Upgrade:

Enter settings menu, and connect the device to network, then choose [check for
updates], one-click online upgrade. 3.0 After-sales service
(1) Our company will provide you with excellent after-sales service and warranty service within agreed time.
(2) The warranty period lasts 12 months from device activation date.
(3) Once the product is sold, the return and refund will not be accepted if there is no quality problem.
(4) For product maintenance beyond the warranty period, we will charge labor and material costs.
(5) If the device is faulty or damaged due to any of the following reasons, we reserve the right not to provide service based on the agreed terms(but you can choose paid service).
※ The device and components are beyond the warranty period.
※ Users find that the product appearance is flawed or damaged, but has no quality problem.
※ Counterfeit, without certificate or invoice, our official back-end system cannot authenticate the device info.
※ The product is damaged due to not following the instructions in this manual for operation, use, storage, and maintenance.
※ Damage caused by private disassembly or damage caused by repair and maintenance of maintenance company unauthorized by Lonsdor.
※ Liquid inflow, moisture, falling into water or mildewing.
※ The newly purchased device works normally without any damage when unpacked for the first time. But with the prolonged time of use, screen damage occurs, such as screen explosion, scratching, white spots, black spots, silk screen, touch damage, etc.
※ The use of special tools and accessories not provided by our company.
※ Force majeure.
※ For the man-made damaged device, if you decide not to repair after we disassemble it and make a quotation, the device appears unstable condition(such as: unable to boot, crash, etc) when you receive it.
※ Private cracking of the system causes function changes, instability, and quality damage.

(6) If the auxiliary parts and other parts(other than the main components of the device) are faulty, you can choose the paid repair service provided by our company or our authorized customer service outlets.
(7) We will perform repair after receiving your device and confirming its problems, so please fill in the problems in details.
(8) After repair finished, we will return the device to customer, so please fill in the correct delivery address and contact number.
(9) Customers who needs to send the device for repair, shall bear the cost, such as round-trip delivery cost, transportation cost and etc. If the device is damaged in the process of delivery, our company will not bear relevant fees. In particular cases, we will assist the customer to claim for compensation against the shipping company..
(10) We do not provide sales invoice to individual in any form. If need it, please ask the dealer you purchased from to invoice you.
(11) Please keep the warranty card properly, and fill in the card when returning your device for repair, so that we can deal with the relevant work procedures (the warranty card attached to the end of the manual).

Lonsdor KH100 Registration guide

Note: After booting the device, please connect to WIFI and enter the following process.
New user
① For the first use, please prepare a common call phone or email to help complete
activation process, click OK to start.
② Boot the device and enter registration activation process.
③ Input user name, password. Confirm password, cell phone number or email to obtain
verification code. Then input the code to submit registration.
④ Account registered successfully, it will take 5 seconds to bind the device.
⑤ Successful registration, enter the system.

Registered user (who has registered Lonsdor products before)
① For the first use, please prepare a registered call phone or email to help complete
activation process, click OK to start.
② Boot the device and enter registration activation process.
③ Input your registered mobile number or email, password to obtain verification code.
Then input the code to submit login.
④ Account login succeeded, it will take 5 seconds to bind the device.
⑤ Successful registration, enter the system.

In addition, users who have already registered Lonsdor’s product can directly choose
[registered user] to activate account.

Lonsdor KH100 Product parameter

Device dimension: 193MM*88MM*24MM
Screen size: 2.8 inch
Screen resolution: 320X240
Battery: 3.7V 2000MAH
Power: 5V 500MA
Work temperature: -5℃~60℃
USB: USB-B/charge-data transfer
Connector port: PS2-7PIN OD3.5 7PIN , 1.27 spacing, the 2nd PIN: NC

Lonsdor KH100 Product parameter

Package includes:

1pc x Lonsdor KH100 Hand-Held Remote/Smart Key Programmer

FAQ For Lonsdor KH100 :

Q: Can the original JMD super chip for Handy Baby and KEYDIY KD-X2 chips be used for Lonsdor KH100?
A: Some chips can. Here share the relevant chips with you.


Xhorse Key Tool Max Key Cloning tool

Xhorse Key Tool Max


If you have any questions, please feel free to contact us

WhatsApp: + 86 18205950686
Email: sales@KeyProM8.com
Skype: KeyProM8.com

Video

Lonsdor KH100 Copy Deputy factory 48 Chip Jetta2010

Tech Support

How to register and update Lonsdor KH100

How to register Lonsdor KH100:

Note:  After booting the device, please connect  to WIFI  and enter the following process.

For New user:

1) For the first use, please prepare a common call phone or email to help complete activation process, click OK to start.
2)  Boot the device and enter registration activation process.
3)  Input user name, password. Confirm password, cellphone number or email to obtain verification code. Then input the code to submit registration.
4)  Account registered successfully, it will take 5 seconds to bind the device.
5) Successful registration, enter the system.

For Registered user(who has registered Lonsdor products before)
1) For the first use, please prepare a registered call phone or email to help complete activation process, click OK to start.
2)  Boot the device and enter registration activation process.
3)  Input your registered mobile number or email, password to obtain verification code. Then input the code to submit login.
4) Account login succeeded, it will take 5 seconds to bind the device.
5) Successful registration, enter the system.

In addition, users who have already registered Lonsdor's product can directly choose [registered user] to activate account.


How to update Lonsdor KH100:

Enter settings menu

Connect the device to network

Then choose [check for updates]

One-click for online update!
